HeldenMesh ケーススタディ
HeldenMeshによるケーススタディ一覧です。
航空機 ＜1＞
|
||||||
|
|
|
|
||||
|
||||||
※クリックした画像が拡大表示されます。

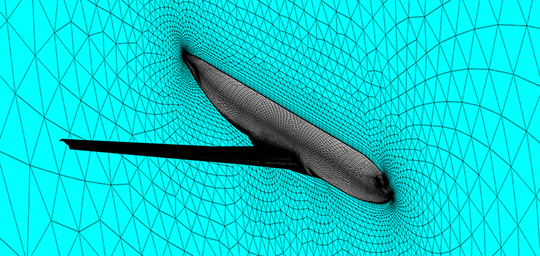

2nd High Lift Prediction Workshop Common Research Model
Number of Nodes: 15,511,954
Number of Prisms: 13,537,326
Number of Pyramids: 219,258
Number of Tets: 49,379,944
Number of Total Cells: 63,136,528
Time: 550.85 s
実行環境: Ubuntu / Hyper-V / Intel(R) Core(TM) i7-1260P 2.10 GHz / 8 並列 / RAM 32GB
航空機 ＜2＞
|
||||||
|
|
|
|
||||
|
|
|||||
※クリックした画像が拡大表示されます。

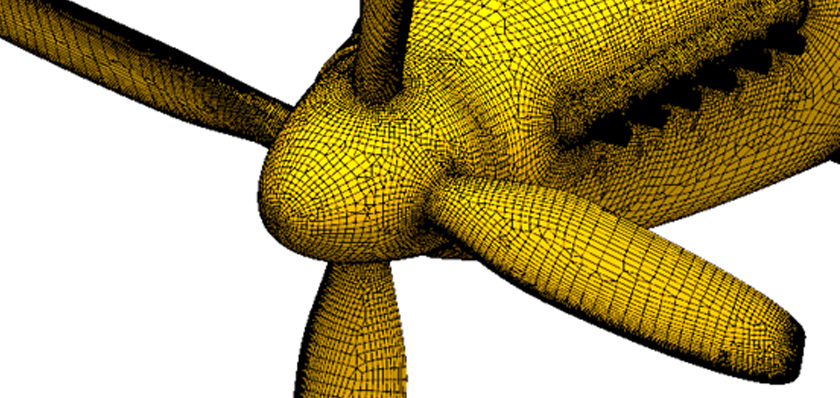

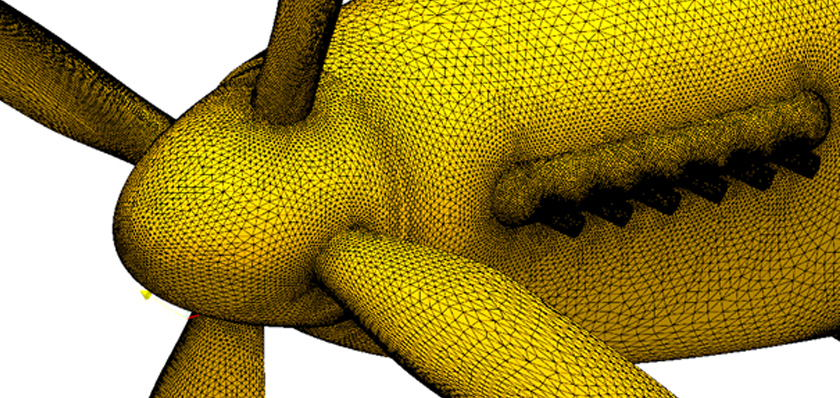

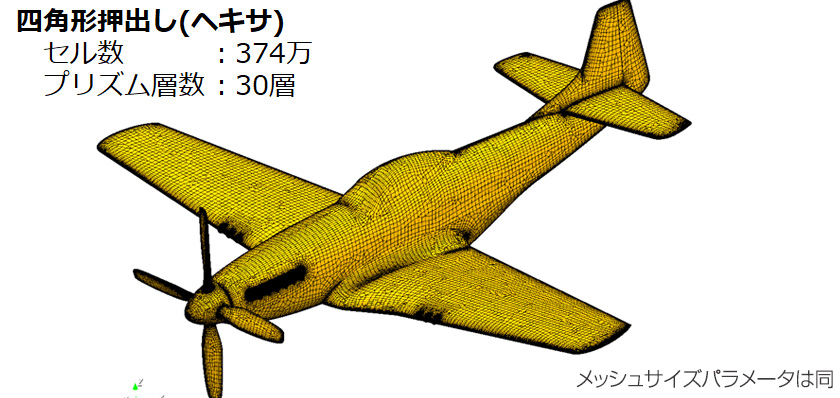

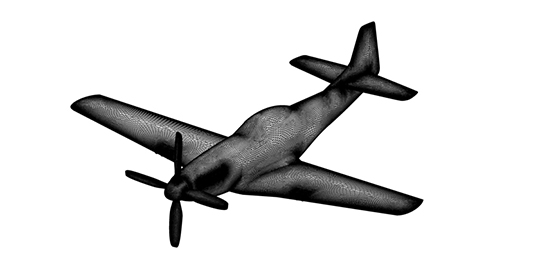

P-51 Mustang
Number of Prisms: 5,491,553
Number of Pyramids: 87,369
Number of Tets: 20,754,950
Number of Total Cells: 26,333,871
Time: 121.36 s
実行環境: Ubuntu / Hyper-V / Intel(R) Core(TM) i7-1260P 2.10 GHz / 8 並列 / RAM 32GB
航空機 ＜3＞
|
||||||
|
|
|
|
||||
|
|
|
||||
※クリックした画像が拡大表示されます。

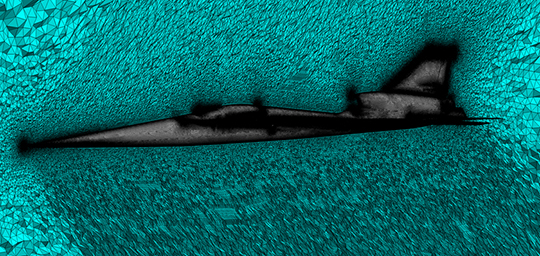

NASA X-59 QueSST
Number of Nodes: 7,716,144
Number of Prisms: 5,287,404
Number of Pyramids: 40,202
Number of Tets: 28,709,528
Number of Total Cells: 34,037,136
Time: 334.38 s
実行環境: Ubuntu / Hyper-V / Intel(R) Core(TM) i7-1260P 2.10 GHz / 8 並列 / RAM 32GB
自動車部品
|
||||||
|
|
|
|
||||
|
||||||
※クリックした画像が拡大表示されます。

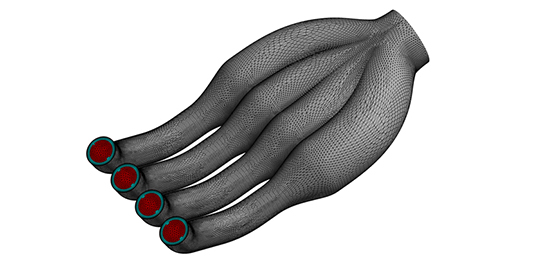

インテークマニホールド
Number of Nodes: 437,699
Number of Prisms: 573,288
Number of Pyramids: 12,719
Number of Tets: 761,344
Number of Total Cells: 1,347,350
Time: 11.60 s
実行環境: Ubuntu / Hyper-V / Intel(R) Core(TM) i7-1260P 2.10 GHz / 8 並列 / RAM 32GB
ターボ機械
|
||||||
|
|
|
|
||||
|
|
|||||
※クリックした画像が拡大表示されます。

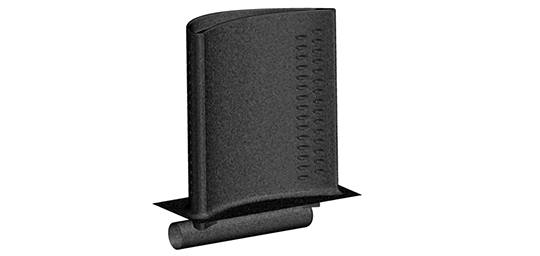

ガスタービン冷却翼
Number of Nodes: 1,049,736
Number of Tets: 5,691,374
Number of Total Cells: 5,691,374
実行環境: Ubuntu / Hyper-V / Intel(R) Core(TM) i7-1260P 2.10 GHz / 8 並列 / RAM 32GB
